Question

Two identical long conducting wires A O B and C O D are placed at right angle to each other, with one above other such that ‘ O ’ is their common point for the two. The wires carry I 1 and I 2 currents, respectively. Point ‘ I ’ is lying at distance ‘ d ’ from ‘ O ’ along a direction perpendicular to the plane containing the wires. The magnetic field at the point ‘ P ’ will be:

Aicharya · Accepted Answer

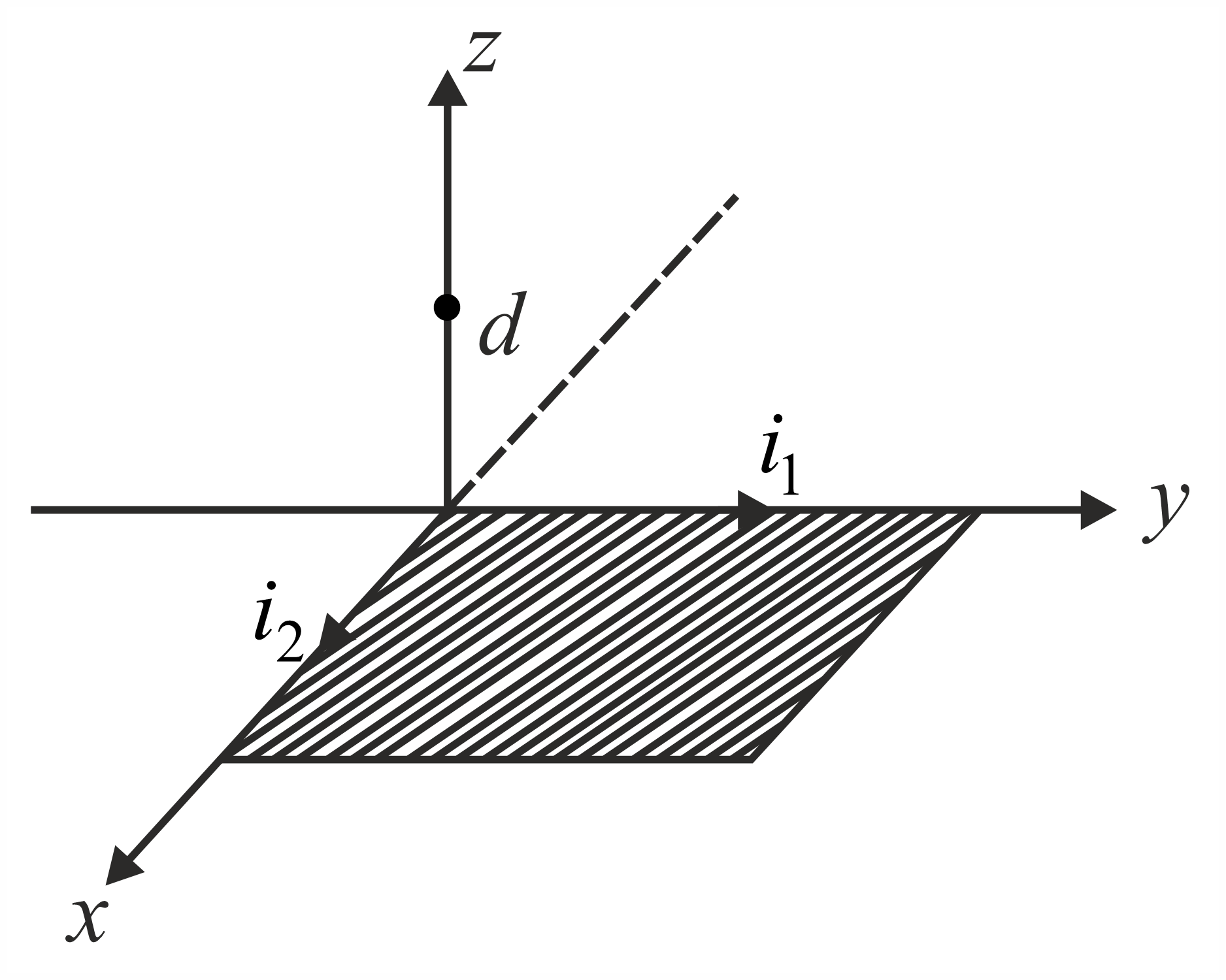

B → due to wire 1 B → 1 = μ 0 i 1 2 π d i ^ B → due to wire 2 B → 2 = μ 0 i 2 2 π d - j ^ B n e t = μ 0 2 π d i 1 2 + i 2 2
