Physics › Current Electricity › Wheatstone Bridge

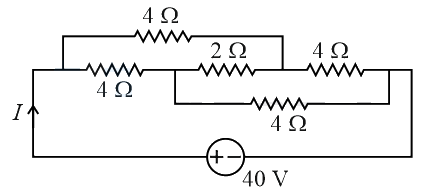

The current I in the given circuit will be
The circuit can be redrawn as :We can see that the circuit is a balanced Wheatstone bridge⇒RAB=4 ΩCurrent through cell I=VRAB=404 A=10 A
The circuit can be redrawn as :
We can see that the circuit is a balanced Wheatstone bridge
⇒RAB=4 Ω
Current through cell I=VRAB=404 A=10 A
Asked in: JEE Main 2022 (26 Jul Shift 1)
Practice more Current Electricity questions on Aicharya
