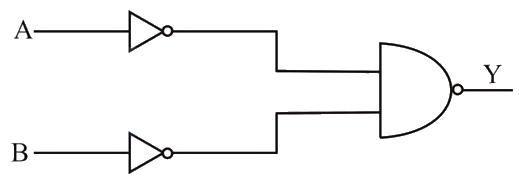

Identify the logic operation performed by the given circuit.

Identify the logic operation performed by the given circuit.

NAND
NOR
OR
AND

Solution

From De-Morgan's law we can write:

$Y = \bar{A \cdot B} = \bar{\bar{A}} + \bar{\bar{B}} = A + B$

Asked in: JEE Main 2024 (31 Jan Shift 1)
