For the given figures, choose the correct options:

For the given figures, choose the correct options:

  1. The rms current in circuit (b) can never be larger than that in (a)
  2. The rms current in figure (a) is always equal to that in figure (b)
  3. The rms current in circuit (b) can be larger than that in (a)
  4. At resonance, current in (b) is less than that in (a)

Solution

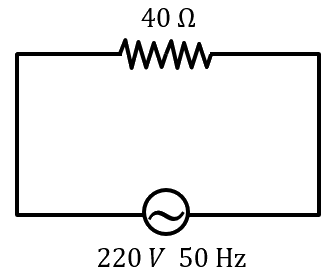

For the circuit(a), Z=R=40 Ω. Hence,

Irms=22040=5.5 A

XL=2πfL=2π×50×50×10-3=15.7 Ω and XC=12πfC=12π×50×0.5×10-6=6369 Ω

For the circuit(b), Z=R2+XL-XC2>40 Ω as

XL is not equal to XC. So rms current in (b) can never be larger than (a)

Asked in: JEE Main 2023 (29 Jan Shift 2)
