In the balanced condition, the values of the resistances of the four arms of a Wheatstone bridge are shown in the figure below. The resistance $R_{3}$ has temperature coefficient $0.0004 ° C^{- 1}$ . If the temperature of $R_{3}$ is increased by $100 ° C,$ the voltage developed between $S$ and $T$ will be __________ volt.

Question

Aicharya · Accepted Answer

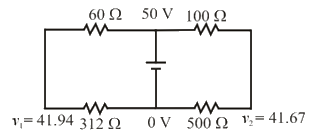

R 3 = 300 ( 1 + α Δ T ) = 300 1 + 4 10000 × 100 = 312 V 1 = 41 . 9354 = 41 . 94 V 2 = 41 . 666 = 41 . 67 V 1 - V 2 = 41 . 94 - 41 . 67 = 0 . 27 `
