Determine the charge on the capacitor in the following circuit:

Determine the charge on the capacitor in the following circuit:
  1. 2 μC
  2. 60 μC
  3. 10 μC
  4. 200 μC

Solution

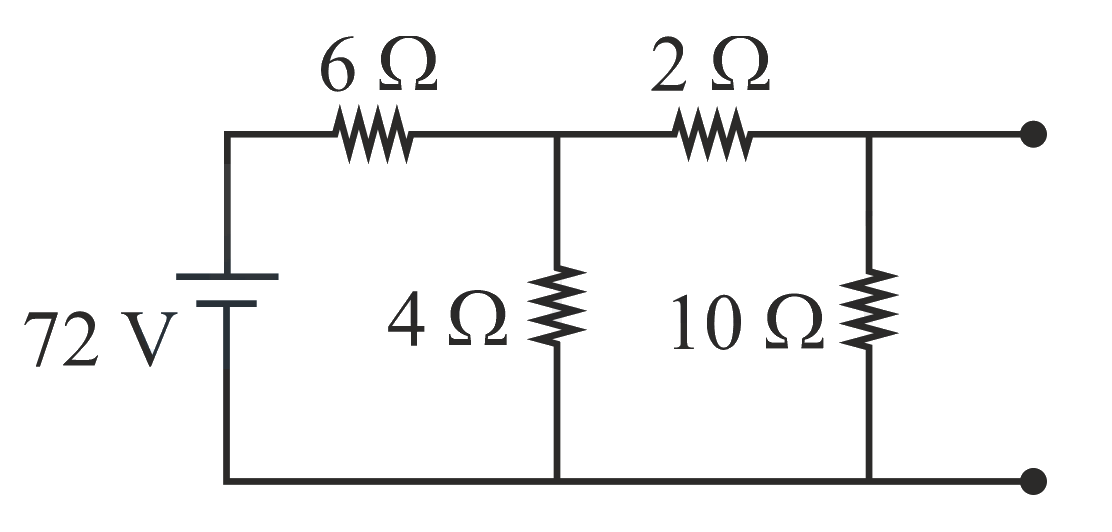

After a long time capacitor branch will behave like open circuit so circuit will be like,

Equivalent resistance is
R=6+4||2+10 Ω = 9 Ω
and, the current through battery becomes 729=8 A
From the circuit shown, current through 10 Ω  resistor becomes, 4(10+2+4)×8=2 A

Potential available for capacitor is = potential drop across 10 Ω
   Potential available for capacitor is: 10×2=20 V
   Charge on capacitor Q=10 μF20 V=200 μC

Asked in: JEE Main 2019 (09 Apr Shift 1)
